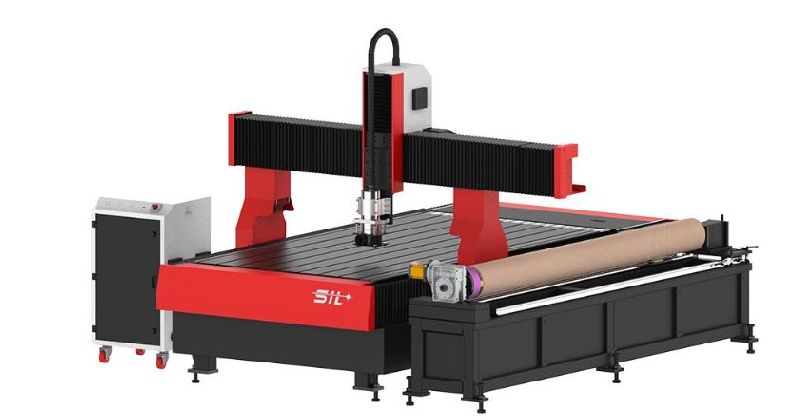

CNC Router Pro

CNC Router Pro

MOQ : 1 piece

Business Type Manufacturer, Exporter, Supplier, Retailer
SPECS/MODEL SIL – 1325, SIL – 1530
X, Y Z Working area 1300x2500x250 mm, 1500x3000x250 mm
Resolution ± 0.03/300 mm
Click to view more

Preferred Buyer From

Location India ( Andhra Pradesh, Bihar, Chandigarh, Delhi, Goa, Gujarat, Haryana, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Punjab, Rajasthan, Tamil Nadu, Telangana, Uttar Pradesh only) & All other countries

Product Details

Repeatability
± 0.03 mm
CNC Spindle
3 KW / 5.5 KW / 12 KW Power Spindle with Air Cooling / Water Cooling Mechanism
Max. Rpm
0-24000 Rpm
Max Working Speed
0-18000 Rpm
Max. Consume Power
5.5 KW, 7.2 KW
Lathe Structure
Welding Steel Structure
X,Y,Z Structure
Rack Pinion, Ball Screw linear Rails
Working Voltage
AC 220V, 50/60 Hz, Single Phase / AC 415V, 50/60 Hz, Three Phase
Working Mode
Stepper / Servo
Table
T-slot / Vacuum bed / Water bed
Linear Guide
Hg 20 for X,Y & Z
Command Code
G Code ( *nc, *mmg, *plt, *cnc)
Operating System
DSP Control System
Memory
128 MB (or Flash Drive)
Inverter
SIL Make / Crompton Greaves / Delta
Optional 1
Rotary Attachment Size Diameter 125mm, Length 1300mm
Optional 2
Vacuum Adsorption / Water bed with T- Slot Table
Dust Collector
With Dust Collector Hood

Description:

  • CNC router finds application in architectural mill work, aluminum and metal composite cladding, sign-making, graphics & print finishing, wood working, plastic fabrication, metal fabrication, foam packaging, die maker, duct maker, solid surface, MDF cutting, 3D panel mold making, 3D plastic trimming, residential & commercial constructions & many more
  • We provide double spindle for faster working performance, and Rotary Attachment (optional).
  • SIL built CNC router for manufacturers who process large volumes of cladding materials and rely on speed and efficiency.
  • CNC router machine has built in X, Y axis drive system. A single-piece, heavy-duty steel frame, coupled with a helical rack drive system and high tolerance bearing components, delivers high-accuracy motion and quality cutting.
  • Optional 3.0 KW / 5.5 KW / 9 KW spindles of various power.
  • Handheld DSP Controller to set job parameter.
  • Water cooled / air cooled spindle for longer life & guaranteed machine performance.
  • Available in many sizes from small to large and Special size table. From 4 x 4ft ~ 7 x 21 ft. Vacuum table or aluminum T- slot extrusion table. Automatic lubricating system. Mist cooling system. Machine moving feet, Manual tool changer spindle.
  • Excellent speed, efficiency, high precision CNC engraver router machine built in X, Y Axis drive system rack and pinion with 25 mm square linear rails achieving high positioning, motion accuracy & longer life.
  • Working Table with aluminum T-slot and PVC sheet for protection of worktable which ensures for longer life.
