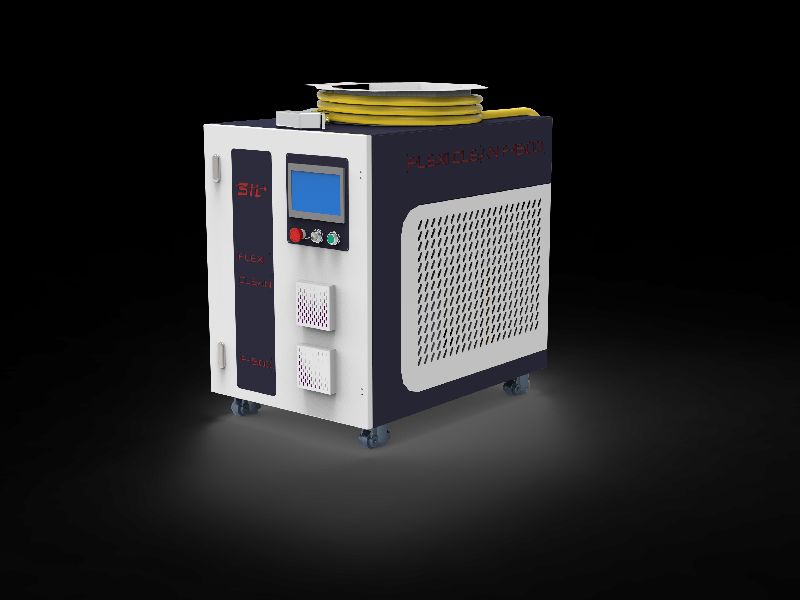

Laser Cleaning Machine

Laser Cleaning Machine

Product Details

Characteristics 100W
Delivery Cable Length 5 m
Average Output Power > 100 W
Maximum Pulse Energy 1.5 mJ
Pulse Frequency Range 1 – 4000 kHz
Pulse Width 2 – 500 ns
Output Power Instability < 5 %
Power Supply Voltage 48 V
Power Consumption < 400 W
Power Supply Current Requirement > 8 A
Central Wavelength 1064 nm
Cooling Method Water Cooled
Emission Bandwith < 15 nm
Polarization Random
Anti-Reflection Protection Yes
Output Beam Diameter 4.0 ± 0.5, 7.5 ± 0.5 (Customizable)
Output Power Tuning Range 0~100 %
Ambient Temperature Range 0 ~ 40 C
Storage Temperature Range – 10 ~ 40 C
Dimensions 350*280*112
Weight 13.2

Features :

  • Laser cleaning machine for de-rusting metal and restoring the metal to obtain same physical and chemical behavior of the metallic elements. Laser Power from 20W to 1 kW based on materials and applications.
  • Laser cleaning system removes the contaminated layers of the metal through exposing it to a focused laser beam.
  • Materials mostly used for laser cleaning are Aluminum (Anodized/Polished/Cast), Stainless Steel/ Mild Steel, Titanium, Copper, Brass, Nickel, Galvanized Metals, Multi-Coated Materials, Painted Metal Alloys, Plastics, Polypropylene/Poly-carbonate, Cast Iron and Chrome, Chrome, Carbide, Rubber and PVC.
  • Cleaning Head is portable and it operates with precise deflection and position of the laser beam. The head provides good stability with pressurized water cooling to the optics and dust proof.
  • It can work offline and can be used immediately after power on.
  • Collimated laser beam output, beam size customizable (default 4mm).
  • The cleaning head is extremely light weight, 650gms only (not include delivery cable), can be operated by hand for a long time.
  • Patented red light assisted focus technology, can adjust the focus position according to different focus lenses.
  • Wireless control, can realize parameter setting and emission control remotely and update parameters at any time.
  • Trolley-type chassis design, can be carried on high-speed train and flight easily with 30 kg full weight.
  • Super integrated injection molding chassis, cushioning design, stable structure wearable, shockproof and drop resistance.



Materials mostly treated with Laser Cleaning Machine are Aluminum (Anodized/Polished/Cast), Stainless Steel/ Mild Steel, Titanium, Copper, Brass, Nickel, Galvanized Metals, Multi-Coated Materials, Painted Metal Alloys, Plastics, Polypropylene/Poly-Carbonate, Cast Iron and Chrome, Chrome, Carbide, Rubber and PVC.
